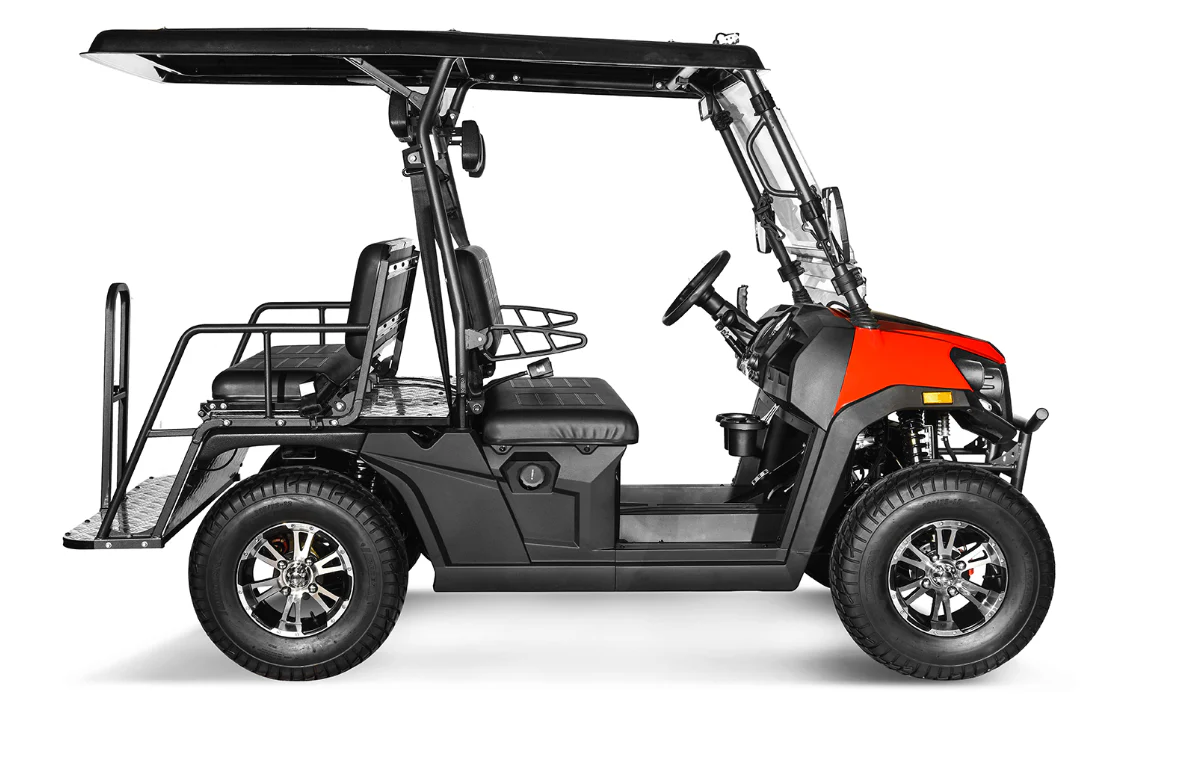

200cc Golf Cart Vitacci Rover Fuel Injected Fully Automatic

Items

Specification

Vehicle dimension (L×W×H)

2843*1340*1870/ 112*52.8*73.6Inch

Dry weight

357KG/785.4LBS

Wheelbase

1840mm/72.4 Inch

Front Tread

1120mm/44 Inch

Rear Tread

975mm/38.4 Inch

Front axle loading

135KG/297Lbs

Rear axle loading

222KG/488.4Lbs

Top speed

41KM/H or 25miles /H

Maxi Climbing angles

15°

Steering radius

3.6m/141.7 Inch

Loading capacity

23units/40HQ

Front & Rear tire size

24 x 8-12 Inch

Ground clearance

155mm/6.1 Inch

Steering angel

Inner 29°, Outer 26.6°

Fuel capacity

23L/5.06 Gallon

Suspension Front

Double A-Arm Independent Shock

Suspension Rear

Single shock swing arm

Front suspension travel

110mm/4.3 Inch

Rear suspension travel

100mm/3.9 Inch

Brake system

Hydraulic Disk

Parking system

Mechanical parking

Final Drive

Chain-drive

Battery information

12V 9Ah

Ignition system

C.D.I

Engine type

4-stroke, Single-Cylinder, Oil-cooled

Displacement

169cc

Max power

7.2kw(7500r/min) /9.65HP (7500r/min)

Max torque

11.4N.m/4500 RPM
